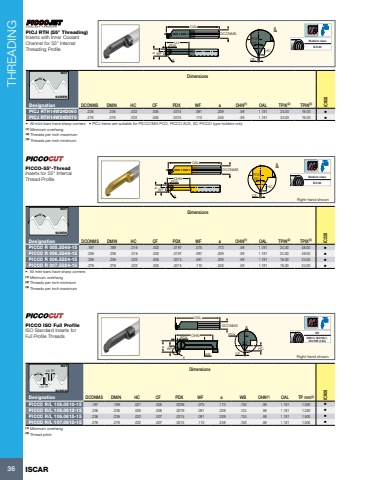

THREADING36 ISCAR Xax55%u00b0CFWFLU PDXDCONMSOALPDXHCB.S.84Medium classDimensionsDesignation DCONMS DMIN HC CF PDX WF a OHN(1) OAL TPIX(2) TPIN(3) IC908PICJ RTH14W24D060 .236 .236 .032 .005 .0315 .091 .209 .59 1.181 24.00 16.00 %u2022 PICJ RTH14W24D070 .276 .276 .032 .005 .0315 .110 .248 .59 1.181 24.00 16.00 %u2022 %u2022 All mini-bars have sharp corners %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Minimum overhang (2) Threads per inch maximum (3) Threads per inch minimum PICJ RTH (55%u00b0 Threading)Inserts with Inner Coolant Channel for 55%u00b0 Internal Threading Profile55%u00b0NUTSCREW Xax55%u00b0CFWFOHNPDXDCONMSOALPDXHCRight-hand shownB.S.84Medium classDimensionsDesignation DCONMS DMIN HC CF PDX WF a OHN(1) OAL TPIN(2) TPIX(3) IC228PICCO R 005.5548-15 .197 .189 .016 .002 .0197 .075 .173 .59 1.181 24.00 48.00 %u2022 PICCO R 006.5548-15 .236 .236 .016 .002 .0197 .091 .209 .59 1.181 24.00 48.00 %u2022 PICCO R 006.5524-15 .236 .236 .032 .005 .0315 .091 .209 .59 1.181 16.00 24.00 %u2022 PICCO R 007.5524-15 .276 .276 .032 .005 .0315 .110 .248 .59 1.181 16.00 24.00 %u2022 %u2022 All mini-bars have sharp corners (1) Minimum overhang (2) Threads per inch minimum (3) Threads per inch maximum PICCO-55%u00b0-ThreadInserts for 55%u00b0 Internal Thread Profile55%u00b0NUTSCREW XWBaX60%u00b0CFWFOHN PDXDCONMSOALPDXHCRight-hand shownDIN13, ISO 68-1,ISO 965 (1&2)6HDimensionsDesignation DCONMS DMIN HC CF PDX WF a WB OHN(1) OAL TP mm(2) IC908PICCO R/L 105.0510-15 .197 .189 .021 .005 .0236 .075 .173 .130 .59 1.181 1.000 %u2022 PICCO R/L 106.0612-15 .236 .236 .026 .006 .0276 .091 .209 .134 .59 1.181 1.250 %u2022 PICCO R/L 106.0815-15 .236 .236 .032 .007 .0315 .091 .209 .134 .59 1.181 1.500 %u2022 PICCO R/L 107.0815-15 .276 .276 .032 .007 .0315 .110 .248 .150 .59 1.181 1.500 %u2022 (1) Minimum overhang (2) Thread pitch PICCO ISO Full ProfileISO Standard Inserts for Full Profile Threads60%u00b0 1/4 TP1/8 TPNUTSCREW
