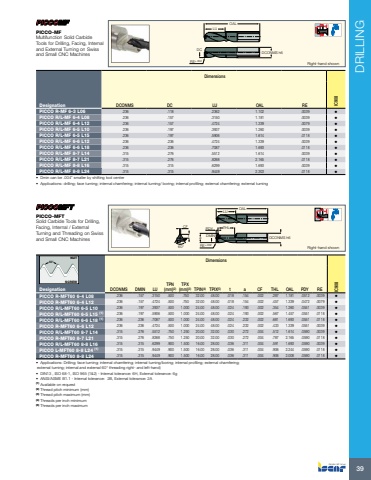

DRILLING39OALLUDCONMS h6 DCRE+.002Right-hand shownDimensionsDesignation DCONMS DC LU OAL RE IC908PICCO R-MF 6-3 L06 .236 .118 .2362 1.102 .0039 %u2022 PICCO R/L-MF 6-4 L08 .236 .157 .3150 1.181 .0039 %u2022 PICCO R/L-MF 6-4 L12 .236 .157 .4724 1.339 .0079 %u2022 PICCO R/L-MF 6-5 L10 .236 .197 .3937 1.260 .0039 %u2022 PICCO R/L-MF 6-5 L15 .236 .197 .5906 1.614 .0118 %u2022 PICCO R/L-MF 6-6 L12 .236 .236 .4724 1.339 .0039 %u2022 PICCO R/L-MF 6-6 L18 .236 .236 .7087 1.693 .0118 %u2022 PICCO R/L-MF 8-7 L14 .315 .276 .5512 1.614 .0039 %u2022 PICCO R/L-MF 8-7 L21 .315 .276 .8268 2.165 .0118 %u2022 PICCO R/L-MF 8-8 L16 .315 .315 .6299 1.693 .0039 %u2022 PICCO R/L-MF 8-8 L24 .315 .315 .9449 2.303 .0118 %u2022 %u2022 Dmin can be .004%u201d smaller by shifting tool center %u2022 Applications: drilling; face turning; internal chamfering; internal turning/ boring; internal profiling; external chamfering; external turningPICCO-MFMultifunction Solid Carbide Tools for Drilling, Facing, Internal and External Turning on Swiss and Small CNC MachinesOAL LUDCONMS h6 PDY CF THL60%u00b0DMIN aRE+.002tRight-hand shownDimensionsDesignation DCONMS DMIN LUTPN (mm)(2)TPX (mm)(3) TPIN(4) TPIX(5) t a CF THL OAL PDY RE IC908PICCO R-MFT60 6-4 L08 .236 .157 .3150 .500 .750 32.00 48.00 .018 .154 .002 .287 1.181 .0512 .0039 %u2022 PICCO R-MFT60 6-4 L12 .236 .157 .4724 .500 .750 32.00 48.00 .018 .154 .002 .457 1.339 .0472 .0079 %u2022 PICCO R/L-MFT60 6-5 L10 .236 .197 .3937 .500 1.000 24.00 48.00 .024 .193 .002 .354 1.260 .0551 .0039 %u2022 PICCO R/L-MFT60 6-5 L15 (1) .236 .197 .5906 .500 1.000 24.00 48.00 .024 .193 .002 .567 1.457 .0551 .0118 %u2022 PICCO R/L-MFT60 6-6 L18 (1) .236 .236 .7087 .500 1.000 24.00 48.00 .024 .232 .002 .681 1.693 .0551 .0118 %u2022 PICCO R-MFT60 6-6 L12 .236 .236 .4724 .500 1.000 24.00 48.00 .024 .232 .002 .433 1.339 .0551 .0039 %u2022 PICCO R/L-MFT60 8-7 L14 .315 .276 .5512 .750 1.250 20.00 32.00 .030 .272 .004 .512 1.614 .0590 .0039 %u2022 PICCO R-MFT60 8-7 L21 .315 .276 .8268 .750 1.250 20.00 32.00 .030 .272 .004 .787 2.165 .0590 .0118 %u2022 PICCO R/L-MFT60 8-8 L16 .315 .315 .6299 .900 1.500 16.00 28.00 .036 .311 .004 .591 1.693 .0590 .0039 %u2022 PICCO L-MFT60 8-8 L24 (1) .315 .315 .9449 .900 1.500 16.00 28.00 .036 .311 .004 .906 2.244 .0590 .0118 %u2022 PICCO R-MFT60 8-8 L24 .315 .315 .9449 .900 1.500 16.00 28.00 .036 .311 .004 .906 2.008 .0590 .0118 %u2022 %u2022 Applications: Drilling; face turning; internal chamfering; internal turning/boring; internal profiling; external chamfering; external turning; internal and external 60%u00b0 threading right- and left-hand) %u2022 DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g %u2022 ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A(1) Available on request (2) Thread pitch minimum (mm) (3) Thread pitch maximum (mm) (4) Threads per inch minimum (5) Threads per inch maximum PICCO-MFTSolid Carbide Tools for Drilling, Facing, Internal / External Turning and Threading on Swiss and Small CNC MachinesNUTSCREW60%u00b0
