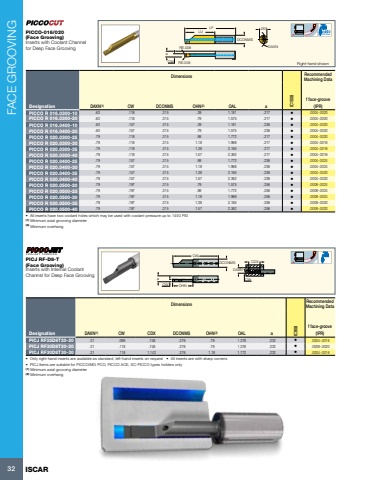

FACE GROOVING32 ISCARCWaLFLUDCONMSDAXN RE.008RE.008.287Right-hand shownPSI MaxDimensions Recommended Machining DataDesignation DAXN(1) CW DCONMS OHN(2) OAL a IC1008f face-groove(IPR)PICCO R 016.0300-10 .63 .118 .315 .39 1.181 .217 %u2022 .0004-.0020PICCO R 016.0300-20 .63 .118 .315 .79 1.575 .217 %u2022 .0004-.0020PICCO R 016.0400-10 .63 .157 .315 .39 1.181 .236 %u2022 .0004-.0020PICCO R 016.0400-20 .63 .157 .315 .79 1.575 .236 %u2022 .0004-.0020PICCO R 020.0300-25 .79 .118 .315 .98 1.772 .217 %u2022 .0004-.0020PICCO R 020.0300-30 .79 .118 .315 1.18 1.968 .217 %u2022 .0004-.0016PICCO R 020.0300-35 .79 .118 .315 1.38 2.165 .217 %u2022 .0004-.0016PICCO R 020.0300-40 .79 .118 .315 1.57 2.362 .217 %u2022 .0004-.0016PICCO R 020.0400-25 .79 .157 .315 .98 1.772 .236 %u2022 .0004-.0024PICCO R 020.0400-30 .79 .157 .315 1.18 1.968 .236 %u2022 .0004-.0024PICCO R 020.0400-35 .79 .157 .315 1.38 2.165 .236 %u2022 .0004-.0020PICCO R 020.0400-40 .79 .157 .315 1.57 2.362 .236 %u2022 .0004-.0020PICCO R 020.0500-20 .79 .197 .315 .79 1.575 .256 %u2022 .0008-.0024PICCO R 020.0500-25 .79 .197 .315 .98 1.772 .256 %u2022 .0008-.0024PICCO R 020.0500-30 .79 .197 .315 1.18 1.968 .256 %u2022 .0008-.0024PICCO R 020.0500-35 .79 .197 .315 1.38 2.165 .256 %u2022 .0008-.0020PICCO R 020.0500-40 .79 .197 .315 1.57 2.362 .256 %u2022 .0008-.0020%u2022 All inserts have two coolant holes which may be used with coolant pressure up to 1450 PSI(1) Minimum axial grooving diameter (2) Minimum overhang PICCO-016/020(Face Grooving)Inserts with Coolant Channel for Deep Face GroovingaCW OHNDCONMSOALDAXNCDXCWDimensions Recommended Machining DataDesignation DAXN(1) CW CDX DCONMS OHN(2) OAL a IC908f face-groove(IPR)PICJ RF25D8T20-20 .31 .098 .748 .276 .79 1.378 .232 %u2022 .0004-.0016PICJ RF30D8T20-20 .31 .118 .748 .276 .79 1.378 .232 %u2022 .0008-.0020PICJ RF30D8T30-30 .31 .118 1.142 .276 1.18 1.772 .232 %u2022 .0004-.0016%u2022 Only right-hand inserts are available as standard, left-hand inserts on request %u2022 All inserts are with sharp corners%u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO types holders only(1) Minimum axial grooving diameter (2) Minimum overhang PICJ RF-D8-T (Face Grooving)Inserts with Internal Coolant Channel for Deep Face Grooving
