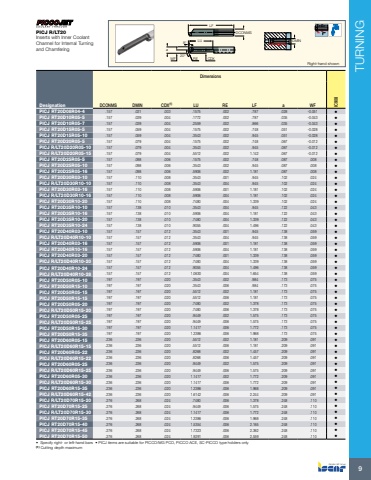

TURNING9aWF RE 20%u00b0LU 8%u00b0CDXLFDCONMSDMINRight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC908PICJ RT20D08R04-4 .157 .031 .003 .1575 .002 .787 .028 -0.051 %u2022 PICJ RT20D10R05-5 .157 .039 .004 .1772 .002 .787 .035 -0.043 %u2022 PICJ RT20D10R05-7 .157 .039 .004 .2559 .002 .866 .035 -0.043 %u2022 PICJ RT20D15R05-5 .157 .059 .004 .1575 .002 .748 .051 -0.028 %u2022 PICJ RT20D15R05-10 .157 .059 .004 .3543 .002 .945 .051 -0.028 %u2022 PICJ RT20D20R05-5 .157 .079 .004 .1575 .002 .748 .067 -0.012 %u2022 PICJ R/LT20D20R05-10 .157 .079 .004 .3543 .002 .945 .067 -0.012 %u2022 PICJ R/LT20D20R05-15 .157 .079 .004 .5512 .002 1.142 .067 -0.012 %u2022 PICJ RT20D25R05-5 .157 .098 .006 .1575 .002 .748 .087 .008 %u2022 PICJ RT20D25R05-10 .157 .098 .006 .3543 .002 .945 .087 .008 %u2022 PICJ RT20D25R05-16 .157 .098 .006 .5906 .002 1.181 .087 .008 %u2022 PICJ RT20D30R03-10 .157 .110 .008 .3543 .001 .945 .102 .024 %u2022 PICJ R/LT20D30R10-10 .157 .110 .008 .3543 .004 .945 .102 .024 %u2022 PICJ RT20D30R03-16 .157 .110 .008 .5906 .001 1.181 .102 .024 %u2022 PICJ R/LT20D30R10-16 .157 .110 .008 .5906 .004 1.181 .102 .024 %u2022 PICJ RT20D30R10-20 .157 .110 .008 .7480 .004 1.339 .102 .024 %u2022 PICJ RT20D35R10-10 .157 .138 .010 .3543 .004 .945 .122 .043 %u2022 PICJ RT20D35R10-16 .157 .138 .010 .5906 .004 1.181 .122 .043 %u2022 PICJ RT20D35R10-20 .157 .138 .010 .7480 .004 1.339 .122 .043 %u2022 PICJ RT20D35R10-24 .157 .138 .010 .9055 .004 1.496 .122 .043 %u2022 PICJ RT20D40R03-10 .157 .157 .012 .3543 .001 .945 .138 .059 %u2022 PICJ R/LT20D40R10-10 .157 .157 .012 .3543 .004 .945 .138 .059 %u2022 PICJ RT20D40R03-16 .157 .157 .012 .5906 .001 1.181 .138 .059 %u2022 PICJ RT20D40R10-16 .157 .157 .012 .5906 .004 1.181 .138 .059 %u2022 PICJ RT20D40R03-20 .157 .157 .012 .7480 .001 1.339 .138 .059 %u2022 PICJ R/LT20D40R10-20 .157 .157 .012 .7480 .004 1.339 .138 .059 %u2022 PICJ RT20D40R10-24 .157 .157 .012 .9055 .004 1.496 .138 .059 %u2022 PICJ R/LT20D40R10-28 .157 .157 .012 1.0630 .004 1.654 .138 .059 %u2022 PICJ RT20D50R05-10 .197 .197 .020 .3543 .002 .984 .173 .075 %u2022 PICJ RT20D50R15-10 .197 .197 .020 .3543 .006 .984 .173 .075 %u2022 PICJ RT20D50R05-15 .197 .197 .020 .5512 .002 1.181 .173 .075 %u2022 PICJ RT20D50R15-15 .197 .197 .020 .5512 .006 1.181 .173 .075 %u2022 PICJ RT20D50R05-20 .197 .197 .020 .7480 .002 1.378 .173 .075 %u2022 PICJ R/LT20D50R15-20 .197 .197 .020 .7480 .006 1.378 .173 .075 %u2022 PICJ RT20D50R05-25 .197 .197 .020 .9449 .002 1.575 .173 .075 %u2022 PICJ R/LT20D50R15-25 .197 .197 .020 .9449 .006 1.575 .173 .075 %u2022 PICJ RT20D50R15-30 .197 .197 .020 1.1417 .006 1.772 .173 .075 %u2022 PICJ RT20D50R15-35 .197 .197 .020 1.3386 .006 1.968 .173 .075 %u2022 PICJ RT20D60R05-15 .236 .236 .020 .5512 .002 1.181 .209 .091 %u2022 PICJ R/LT20D60R15-15 .236 .236 .020 .5512 .006 1.181 .209 .091 %u2022 PICJ RT20D60R05-22 .236 .236 .020 .8268 .002 1.457 .209 .091 %u2022 PICJ R/LT20D60R15-22 .236 .236 .020 .8268 .006 1.457 .209 .091 %u2022 PICJ RT20D60R05-25 .236 .236 .020 .9449 .002 1.575 .209 .091 %u2022 PICJ R/LT20D60R15-25 .236 .236 .020 .9449 .006 1.575 .209 .091 %u2022 PICJ RT20D60R05-30 .236 .236 .020 1.1417 .002 1.772 .209 .091 %u2022 PICJ R/LT20D60R15-30 .236 .236 .020 1.1417 .006 1.772 .209 .091 %u2022 PICJ RT20D60R15-35 .236 .236 .020 1.3386 .006 1.968 .209 .091 %u2022 PICJ R/LT20D60R15-42 .236 .236 .020 1.6142 .006 2.244 .209 .091 %u2022 PICJ R/LT20D70R15-20 .276 .268 .024 .7480 .006 1.378 .248 .110 %u2022 PICJ RT20D70R15-25 .276 .268 .024 .9449 .006 1.575 .248 .110 %u2022 PICJ R/LT20D70R15-30 .276 .268 .024 1.1417 .006 1.772 .248 .110 %u2022 PICJ RT20D70R15-35 .276 .268 .024 1.3386 .006 1.968 .248 .110 %u2022 PICJ RT20D70R15-40 .276 .268 .024 1.5354 .006 2.165 .248 .110 %u2022 PICJ RT20D70R15-45 .276 .268 .024 1.7323 .006 2.362 .248 .110 %u2022 PICJ RT20D70R15-50 .276 .268 .024 1.9291 .006 2.559 .248 .110 %u2022 %u2022 Specify right- or left-hand bars %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Cutting depth maximum PICJ R/LT20Inserts with Inner Coolant Channel for Internal Turning and Chamfering
